Flowable

Flowable

一、介绍

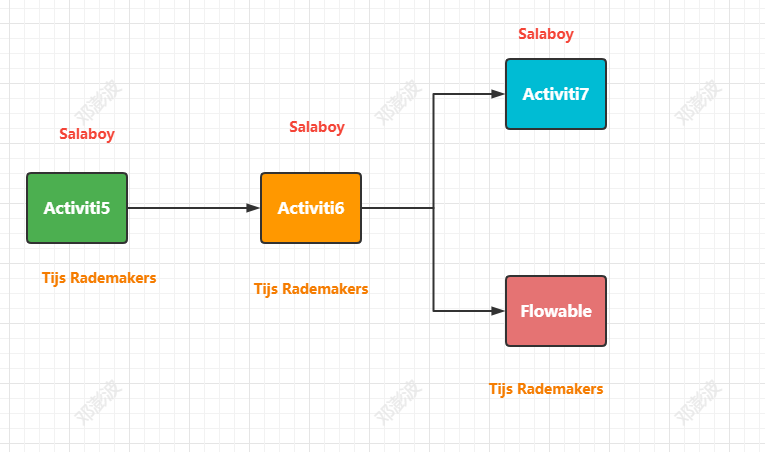

Flowable是BPMN的一个基于java的软件实现，不过Flowable不仅仅包括BPMN，还有DMN决策表和CMMN Case管理引擎，并且有自己的用户管理、微服务API等一系列功能，是一个服务平台。

image-20220317101115398

二、概念

流程部署

一次流程部署会在act_re_deployment表中生成一条记录，一次可部署一个或者多个流程模板

流程定义

流程定义 ProcessDefinition 这个好说，将一个流程 XML 文件部署到 flowable 中，对应的数据在act_re_procdef表中，这就是一个定义好的流程了，基于这个定义好的流程，我们可以开启很多流程实例

流程实例

流程实例 ProcessInstance 就是通过流程定义启动的一个流程，他表示一个流程从开始到结束的最大的流程分支，在一个流程中，只存在一个流程实例，流程实例和流程定义的关系就类似于 Java 对象和 Java 类之间的关系

执行实例

首先从类的关系上来看，ProcessInstance 就是 Execution 的子类。

流程实例通常是执行实例的根结点，即在一个流程中，出口和入口可以算是一个流程实例的节点，而中间的过程则是执行实例。

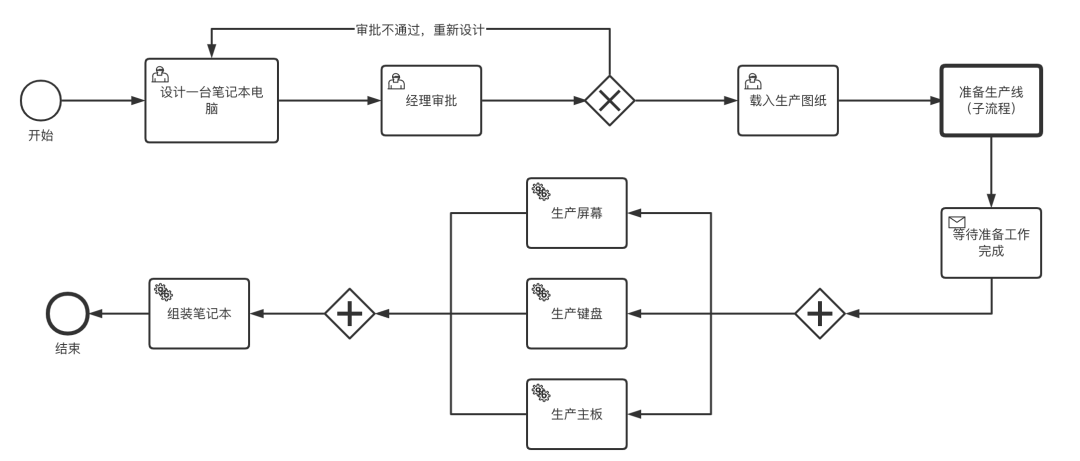

假如流程本身就是一条线，那么流程实例和执行实例基本上是一样的，但是如果流程中包含多条线，例如下图：


这张图中有并行网关，并行任务执行的时候，每一个并行任务就是一个执行实例，这样大家就好理解了

活动实例

流程实例创建后走过的线路上每一条的线、任务、网关、事件都是活动实例，具体信息保存在act_ru_actinst表中，流程走完后保存在act_hi_actinst表中

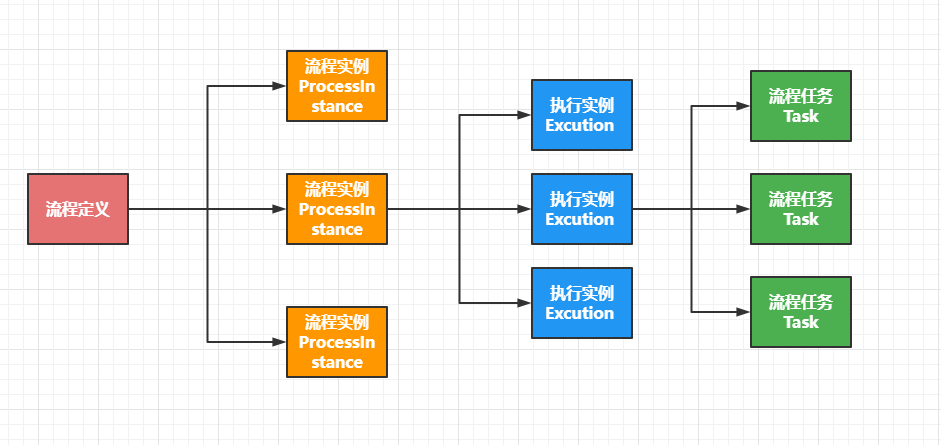

关系图

image-20220324095243595

三、制作流程图

flowable-ui

1
2
3
4
5
6
7
8
9
10
11
#docker 部署
#拉取镜像
docker pull flowable/flowable-ui

#运行
docker run -d -p 8080:8080 flowable/flowable-ui

#访问
http://localhost:8080/flowable-ui
user: admin
password: test

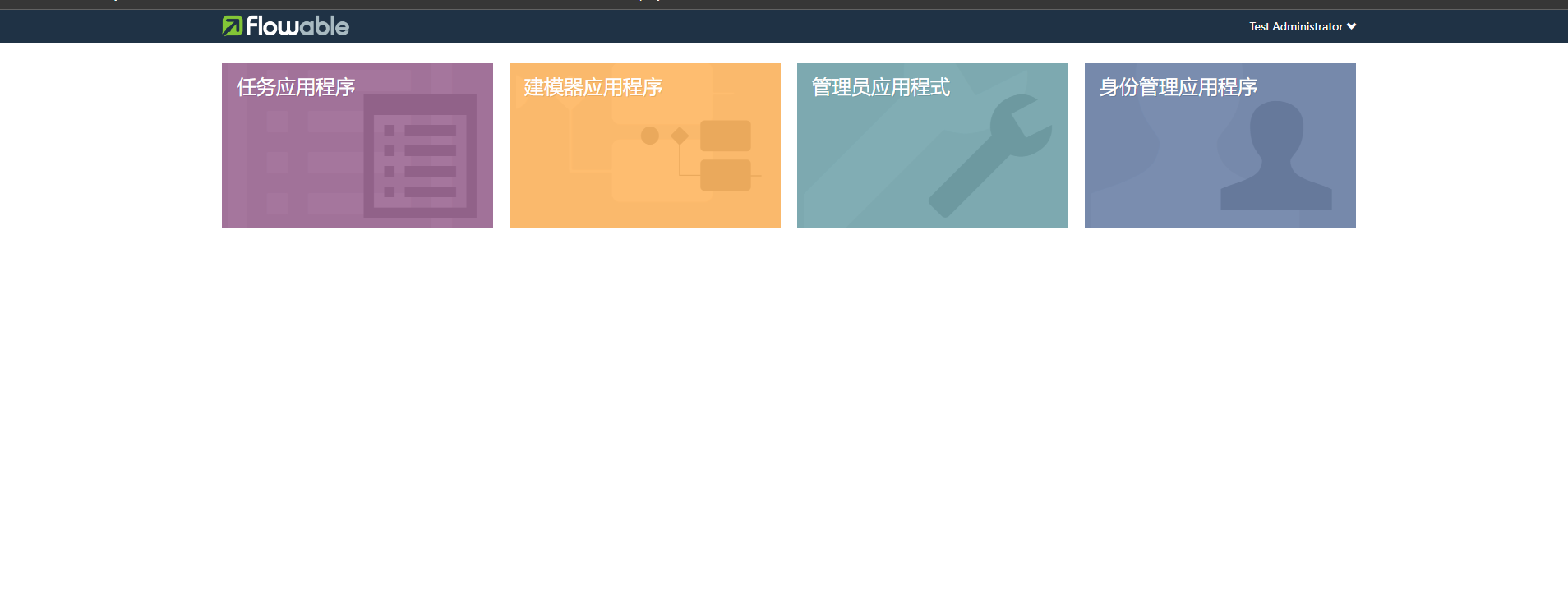

登录flowable-ui后进入首页界面

image-20221014100745127

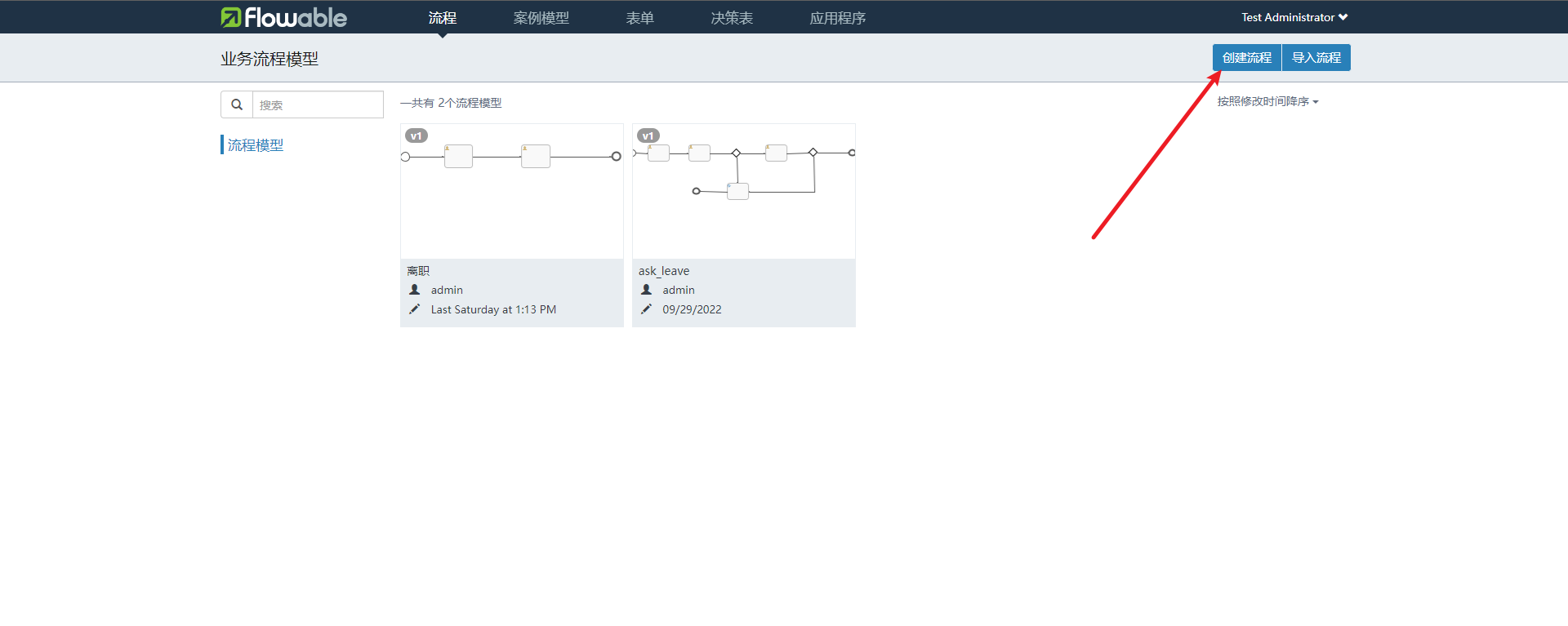

进入建模器应用程序点击创建流程图

image-20221014101013055

流程模板文件的一些概念

  • <process> ：表示一个完整的工作流程。

  • <startEvent> ：工作流中起点位置，也就是图中的绿色按钮。

  • <endEvent> ：工作流中结束位置，也就是图中的红色按钮。

  • <userTask> ：代表一个任务审核节点（组长、经理等角色），这个节点上有一个 flowable:assignee 属性，这表示这个节点该由谁来处理，将来在 Java 代码中调用的时候，我们需要指定对应的处理人的 ID 或者其他唯一标记。

  • <serviceTask>：这是服务任务，在具体的实现中，这个任务可以做任何事情。

  • <sequenceFlow> ：链接各个节点的线条，sourceRef 属性表示线的起始节点，targetRef 属性表示线指向的节点，我们图中的线条都属于这种。

  • 网关：包含网关，标签后缀为Gateway的都为网关

排他网关（常用）：排他网关（exclusive gateway）（也叫异或网关 XOR gateway，或者更专业的，基于数据的排他网关 exclusive data-based gateway），用于对流程中的决策建模。当执行到达这个网关时，会按照所有出口顺序流定义的顺序对它们进行计算。选择第一个条件计算为true的顺序流（当没有设置条件时，认为顺序流为true）继续流程。排他网关用内部带有’X’图标的标准网关（菱形）表示，’X’图标代表异或的含义。请注意内部没有图标的网关默认为排他网关

并行网关（常用）：并行网关允许将流程分成多条分支，也可以把多条分支汇聚到一起，并行网关的功能是基于进入和外出顺序流的

事件网关：包含网关可以看做是排他网关和并行网关的结合体。 和排他网关一样，你可以在外出顺序流上定义条件，包含网关会解析它们。 但是主要的区别是包含网关可以选择多于一条顺序流，这和并行网关一样。

包含网关：事件网关允许根据事件判断流向。网关的每个外出顺序流都要连接到一个中间捕获事件。 当流程到达一个基于事件网关，网关会进入等待状态：会暂停执行。与此同时，会为每个外出顺序流创建相对的事件订阅。

  • 监听器：标签后缀带Listener的都为监听器，可在制作流程图时配置好监听器

    执行监听器

    事件监听器

    任务监听器（常用）

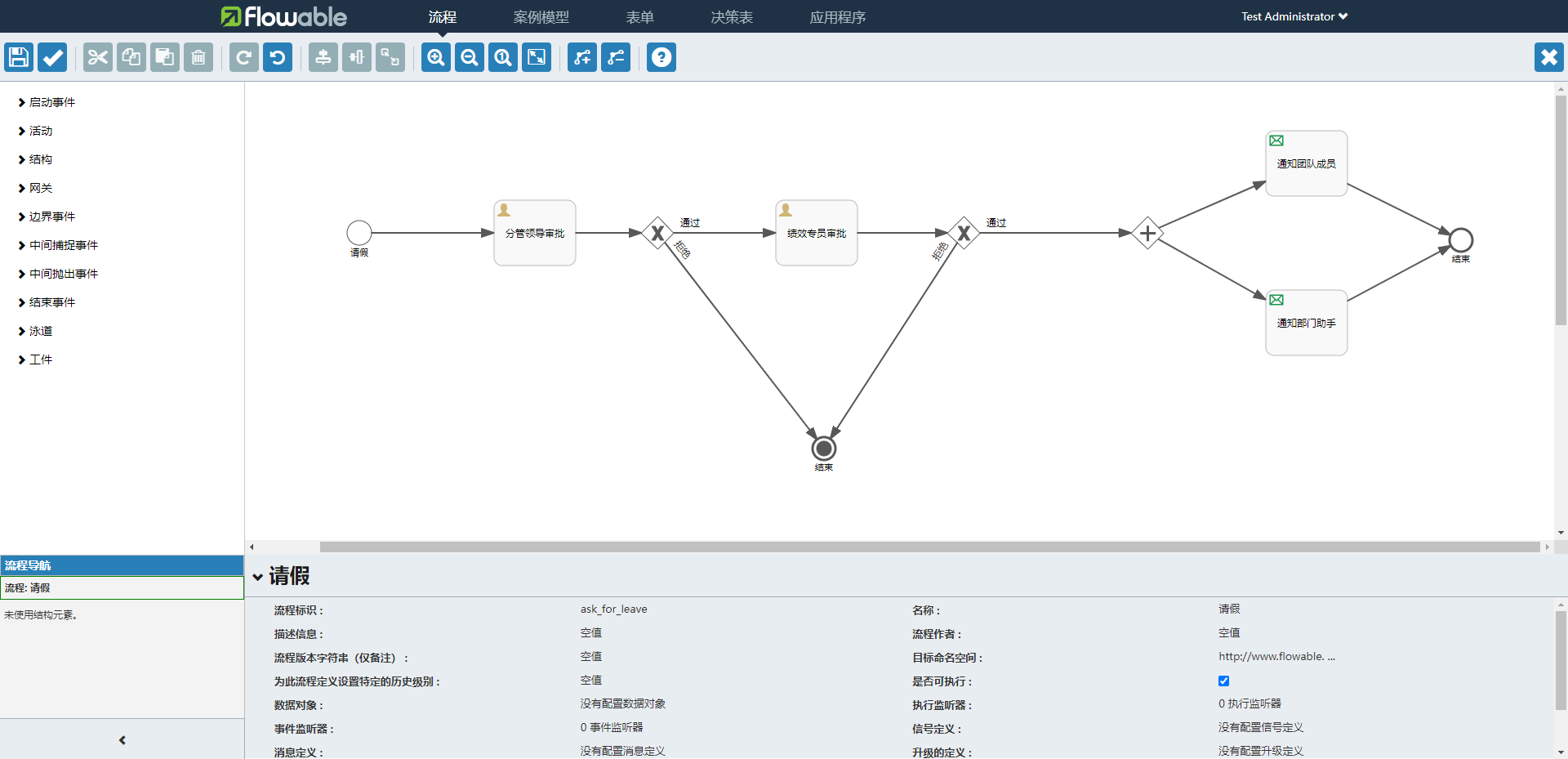

请假流程模板案例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
<?xml version="1.0" encoding="UTF-8"?>
<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:flowable="http://flowable.org/bpmn" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC" xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI" typeLanguage="http://www.w3.org/2001/XMLSchema" expressionLanguage="http://www.w3.org/1999/XPath" targetNamespace="http://www.flowable.org/processdef" exporter="Flowable Open Source Modeler" exporterVersion="6.7.2">
  <process id="ask_for_leave" name="请假" isExecutable="true">
    <startEvent id="startNode1" name="请假" flowable:formFieldValidation="true">
      <extensionElements>
        <flowable:executionListener event="start" delegateExpression="${flowableExecutionListener}"></flowable:executionListener>
      </extensionElements>
    </startEvent>
    <userTask id="leader" name="分管领导审批" flowable:formFieldValidation="true">
      <extensionElements>
        <flowable:taskListener event="create" delegateExpression="${flowableTaskListener}"></flowable:taskListener>
      </extensionElements>
    </userTask>
    <userTask id="performance" name="绩效专员审批" flowable:formFieldValidation="true">
      <extensionElements>
        <flowable:taskListener event="create" delegateExpression="${flowableTaskListener}"></flowable:taskListener>
      </extensionElements>
    </userTask>
    <receiveTask id="team" name="通知团队成员">
      <extensionElements>
        <flowable:taskListener event="create" delegateExpression="${flowableTaskListener}"></flowable:taskListener>
      </extensionElements>
    </receiveTask>
    <receiveTask id="dept_helper" name="通知部门助手">
      <extensionElements>
        <flowable:taskListener event="create" delegateExpression="${flowableTaskListener}"></flowable:taskListener>
      </extensionElements>
    </receiveTask>
    <endEvent id="end" name="结束">
      <extensionElements>
        <flowable:executionListener event="end" delegateExpression="${flowableExecutionListener}"></flowable:executionListener>
      </extensionElements>
    </endEvent>
    <exclusiveGateway id="leader_audit"></exclusiveGateway>
    <parallelGateway id="sid-3769AE75-7F89-4B84-A3F9-1487B4B42881"></parallelGateway>
    <exclusiveGateway id="performance_aduit"></exclusiveGateway>
    <sequenceFlow id="sid-53190FDB-D757-438A-A198-74DCEF456ABD" sourceRef="leader" targetRef="leader_audit"></sequenceFlow>
    <endEvent id="error_end" name="结束">
      <extensionElements>
        <flowable:executionListener event="end" delegateExpression="${flowableExecutionListener}"></flowable:executionListener>
      </extensionElements>
      <terminateEventDefinition></terminateEventDefinition>
    </endEvent>
    <sequenceFlow id="sid-4E9D29F6-44BC-431A-919A-EF3E15876D0E" sourceRef="sid-3769AE75-7F89-4B84-A3F9-1487B4B42881" targetRef="team"></sequenceFlow>
    <sequenceFlow id="sid-B62FFD66-D3AD-4C02-9F3B-9FBA33FA0FF8" sourceRef="sid-3769AE75-7F89-4B84-A3F9-1487B4B42881" targetRef="dept_helper"></sequenceFlow>
    <sequenceFlow id="sid-005B6FAF-9609-4A8E-8BF5-6462EE026B0A" sourceRef="team" targetRef="end"></sequenceFlow>
    <sequenceFlow id="sid-102048FB-EFB1-4B2F-A460-6123DA5D9A84" sourceRef="dept_helper" targetRef="end"></sequenceFlow>
    <sequenceFlow id="sid-D111103A-C773-4E67-ADEB-0EBE63C8E6F6" name="拒绝" sourceRef="performance_aduit" targetRef="error_end">
      <conditionExpression xsi:type="tFormalExpression"><![CDATA[${!audit_result}]]></conditionExpression>
    </sequenceFlow>
    <sequenceFlow id="sid-4E76E188-42A6-487B-8B06-80E76B26AD6E" name="拒绝" sourceRef="leader_audit" targetRef="error_end">
      <conditionExpression xsi:type="tFormalExpression"><![CDATA[${!audit_result}]]></conditionExpression>
    </sequenceFlow>
    <sequenceFlow id="sid-196F616F-EB8F-4E3C-ADCD-0EBFD0E28C4E" name="通过" sourceRef="performance_aduit" targetRef="sid-3769AE75-7F89-4B84-A3F9-1487B4B42881">
      <conditionExpression xsi:type="tFormalExpression"><![CDATA[${audit_result}]]></conditionExpression>
    </sequenceFlow>
    <sequenceFlow id="sid-D4DE4191-D133-45C7-86DB-B1392FBE706E" sourceRef="performance" targetRef="performance_aduit"></sequenceFlow>
    <sequenceFlow id="sid-E284EA7D-E566-4D09-BD62-4D4F786C2E80" name="通过" sourceRef="leader_audit" targetRef="performance">
      <conditionExpression xsi:type="tFormalExpression"><![CDATA[${audit_result}]]></conditionExpression>
    </sequenceFlow>
    <sequenceFlow id="sid-7FD07E78-0667-418C-9C22-BD9D8A5A3319" sourceRef="startNode1" targetRef="leader"></sequenceFlow>
  </process>
  <bpmndi:BPMNDiagram id="BPMNDiagram_ask_for_leave">
    <bpmndi:BPMNPlane bpmnElement="ask_for_leave" id="BPMNPlane_ask_for_leave">
      <bpmndi:BPMNShape bpmnElement="startNode1" id="BPMNShape_startNode1">
        <omgdc:Bounds height="30.0" width="30.0" x="210.0" y="170.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="leader" id="BPMNShape_leader">
        <omgdc:Bounds height="80.0" width="100.0" x="390.0" y="145.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="performance" id="BPMNShape_performance">
        <omgdc:Bounds height="80.0" width="100.0" x="735.0" y="145.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="team" id="BPMNShape_team">
        <omgdc:Bounds height="80.0" width="100.0" x="1335.0" y="60.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="dept_helper" id="BPMNShape_dept_helper">
        <omgdc:Bounds height="80.0" width="100.0" x="1335.0" y="255.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="end" id="BPMNShape_end">
        <omgdc:Bounds height="28.0" width="28.0" x="1560.0" y="180.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="leader_audit" id="BPMNShape_leader_audit">
        <omgdc:Bounds height="40.0" width="40.0" x="570.0" y="165.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="sid-3769AE75-7F89-4B84-A3F9-1487B4B42881" id="BPMNShape_sid-3769AE75-7F89-4B84-A3F9-1487B4B42881">
        <omgdc:Bounds height="40.0" width="40.0" x="1170.0" y="165.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="performance_aduit" id="BPMNShape_performance_aduit">
        <omgdc:Bounds height="40.0" width="40.0" x="945.0" y="165.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="error_end" id="BPMNShape_error_end">
        <omgdc:Bounds height="28.0" width="28.0" x="780.0" y="435.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNEdge bpmnElement="sid-4E9D29F6-44BC-431A-919A-EF3E15876D0E" id="BPMNEdge_sid-4E9D29F6-44BC-431A-919A-EF3E15876D0E" flowable:sourceDockerX="20.5" flowable:sourceDockerY="20.5" flowable:targetDockerX="50.0" flowable:targetDockerY="40.0">
        <omgdi:waypoint x="1204.358125" y="179.39285714285708"></omgdi:waypoint>
        <omgdi:waypoint x="1335.0" y="121.95745501285347"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="sid-D4DE4191-D133-45C7-86DB-B1392FBE706E" id="BPMNEdge_sid-D4DE4191-D133-45C7-86DB-B1392FBE706E" flowable:sourceDockerX="50.0" flowable:sourceDockerY="40.0" flowable:targetDockerX="20.0" flowable:targetDockerY="20.0">
        <omgdi:waypoint x="834.9499999998408" y="185.0"></omgdi:waypoint>
        <omgdi:waypoint x="945.0" y="185.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="sid-7FD07E78-0667-418C-9C22-BD9D8A5A3319" id="BPMNEdge_sid-7FD07E78-0667-418C-9C22-BD9D8A5A3319" flowable:sourceDockerX="15.0" flowable:sourceDockerY="15.0" flowable:targetDockerX="50.0" flowable:targetDockerY="40.0">
        <omgdi:waypoint x="239.94999960454757" y="185.0"></omgdi:waypoint>
        <omgdi:waypoint x="389.9999999999028" y="185.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="sid-102048FB-EFB1-4B2F-A460-6123DA5D9A84" id="BPMNEdge_sid-102048FB-EFB1-4B2F-A460-6123DA5D9A84" flowable:sourceDockerX="50.0" flowable:sourceDockerY="40.0" flowable:targetDockerX="14.0" flowable:targetDockerY="14.0">
        <omgdi:waypoint x="1434.95" y="268.2804232804233"></omgdi:waypoint>
        <omgdi:waypoint x="1561.650064507481" y="200.5761306170835"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="sid-D111103A-C773-4E67-ADEB-0EBE63C8E6F6" id="BPMNEdge_sid-D111103A-C773-4E67-ADEB-0EBE63C8E6F6" flowable:sourceDockerX="20.5" flowable:sourceDockerY="20.5" flowable:targetDockerX="14.0" flowable:targetDockerY="14.0">
        <omgdi:waypoint x="957.6149425287356" y="197.58465517241382"></omgdi:waypoint>
        <omgdi:waypoint x="801.6104872915953" y="437.2650092321877"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="sid-005B6FAF-9609-4A8E-8BF5-6462EE026B0A" id="BPMNEdge_sid-005B6FAF-9609-4A8E-8BF5-6462EE026B0A" flowable:sourceDockerX="50.0" flowable:sourceDockerY="40.0" flowable:targetDockerX="14.0" flowable:targetDockerY="14.0">
        <omgdi:waypoint x="1434.95" y="124.84285714285714"></omgdi:waypoint>
        <omgdi:waypoint x="1561.4526663539648" y="187.76417930402073"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="sid-196F616F-EB8F-4E3C-ADCD-0EBFD0E28C4E" id="BPMNEdge_sid-196F616F-EB8F-4E3C-ADCD-0EBFD0E28C4E" flowable:sourceDockerX="20.5" flowable:sourceDockerY="20.5" flowable:targetDockerX="20.0" flowable:targetDockerY="20.0">
        <omgdi:waypoint x="984.4880522088274" y="185.45758928571428"></omgdi:waypoint>
        <omgdi:waypoint x="1170.0444444444413" y="185.0443333333333"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="sid-B62FFD66-D3AD-4C02-9F3B-9FBA33FA0FF8" id="BPMNEdge_sid-B62FFD66-D3AD-4C02-9F3B-9FBA33FA0FF8" flowable:sourceDockerX="20.5" flowable:sourceDockerY="20.5" flowable:targetDockerX="50.0" flowable:targetDockerY="40.0">
        <omgdi:waypoint x="1202.6233886879315" y="192.32574013157895"></omgdi:waypoint>
        <omgdi:waypoint x="1335.0" y="266.8508997429306"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="sid-53190FDB-D757-438A-A198-74DCEF456ABD" id="BPMNEdge_sid-53190FDB-D757-438A-A198-74DCEF456ABD" flowable:sourceDockerX="50.0" flowable:sourceDockerY="40.0" flowable:targetDockerX="20.0" flowable:targetDockerY="20.0">
        <omgdi:waypoint x="489.95000000000005" y="185.0"></omgdi:waypoint>
        <omgdi:waypoint x="570.0" y="185.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="sid-4E76E188-42A6-487B-8B06-80E76B26AD6E" id="BPMNEdge_sid-4E76E188-42A6-487B-8B06-80E76B26AD6E" flowable:sourceDockerX="20.5" flowable:sourceDockerY="20.5" flowable:targetDockerX="14.0" flowable:targetDockerY="14.0">
        <omgdi:waypoint x="598.7576552462526" y="196.19208413615925"></omgdi:waypoint>
        <omgdi:waypoint x="785.4423147838409" y="437.9138885614715"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="sid-E284EA7D-E566-4D09-BD62-4D4F786C2E80" id="BPMNEdge_sid-E284EA7D-E566-4D09-BD62-4D4F786C2E80" flowable:sourceDockerX="20.5" flowable:sourceDockerY="20.5" flowable:targetDockerX="50.0" flowable:targetDockerY="40.0">
        <omgdi:waypoint x="609.4939335394023" y="185.45103092783506"></omgdi:waypoint>
        <omgdi:waypoint x="734.9999999999937" y="185.12840616966582"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
    </bpmndi:BPMNPlane>
  </bpmndi:BPMNDiagram>
</definitions>

image-20221014131734423

任务监听器和执行监听器需配置java相关类

四、springboot集成flowable

引入依赖

1
2
3
4
5
<dependency>
                <groupId>org.flowable</groupId>
                <artifactId>flowable-spring-boot-starter</artifactId>
                <version>6.7.2</version>
 </dependency>

配置数据源

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
@Setter
private DataSourceProperties datasource;

@Bean
public EngineConfigurationConfigurer<SpringAppEngineConfiguration> engineConfigurer() {
    return configuration -> {
        configuration.setDataSource(getFlowableDataSource());
    };
}

public DataSource getFlowableDataSource() {
    return DataSourceBuilder.create()
        .url(datasource.getUrl())
        .driverClassName(datasource.getDriverClassName())
        .username(datasource.getUsername())
        .password(datasource.getPassword())
        .build();
}

1
2
3
4
5
6
7
8
9
10
11
12
13
spring:
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    username: root
    password: 123456
    url: jdbc:mysql://localhost:3306/dyyun_workflow?useUnicode=true&characterEncoding=utf-8&allowMultiQueries=true&useSSL=false

flowable:
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    username: root
    password: 123456
    url: jdbc:mysql://localhost:3306/dyyun_flowable?useUnicode=true&characterEncoding=utf-8&allowMultiQueries=true&useSSL=false

image-20221014142918883

由于flowable自带的表过多，为将实际业务所需数据库表分开，可以为flowable配置自定义数据源

监听器Java类配置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
package com.example.flowable.demo.listener;

import java.util.List;
import lombok.extern.slf4j.Slf4j;
import org.flowable.engine.TaskService;
import org.flowable.engine.delegate.DelegateExecution;
import org.flowable.engine.delegate.ExecutionListener;
import org.flowable.task.api.Task;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

@Slf4j
@Component
public class FlowableExecutionListener implements ExecutionListener {

    @Autowired
    private TaskService taskService;

    @Override
    public void notify(DelegateExecution execution) {

        log.info(
            "FlowableExecutionListener, processInstanceId: {}, eventName: {}, id: {}, isEnded: {}, isActive: {}, isConcurrent: {}, currentActivityId: {},",
            execution.getProcessInstanceId(),
            execution.getEventName(), execution.getId(), execution.isEnded(), execution.isActive(),
            execution.isConcurrent()
            , execution.getCurrentActivityId()
        );

        List<Task> taskList = taskService.createTaskQuery().processInstanceId(execution.getProcessInstanceId()).list();
        for (Task task : taskList) {
            log.info("Task, {}", task.getTaskDefinitionKey());
        }
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
package com.example.flowable.demo.listener;

import java.util.List;
import lombok.extern.slf4j.Slf4j;
import org.flowable.engine.RuntimeService;
import org.flowable.engine.TaskService;
import org.flowable.engine.delegate.TaskListener;
import org.flowable.task.api.Task;
import org.flowable.task.service.delegate.DelegateTask;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

@Slf4j
@Component
public class FlowableTaskListener implements TaskListener {

    @Autowired
    private RuntimeService runtimeService;

    @Autowired
    private TaskService taskService;

    @Override
    public void notify(DelegateTask delegateTask) {
        log.info(
            "FlowableTaskListener, id: {}, assignee: {}, eventName: {}, name: {}, processInstanceId: {}, taskDefinitionKey: {}, suspended: {}",
            delegateTask.getId(),
            delegateTask.getAssignee(),
            delegateTask.getEventName(),
            delegateTask.getName(),
            delegateTask.getProcessInstanceId(),
            delegateTask.getTaskDefinitionKey(),
            delegateTask.isSuspended()
        );

        List<Task> taskList = taskService.createTaskQuery().processInstanceId(delegateTask.getProcessInstanceId()).list();
        for (Task task : taskList) {
            log.info("Task, {}", task.getTaskDefinitionKey());
        }
    }

}

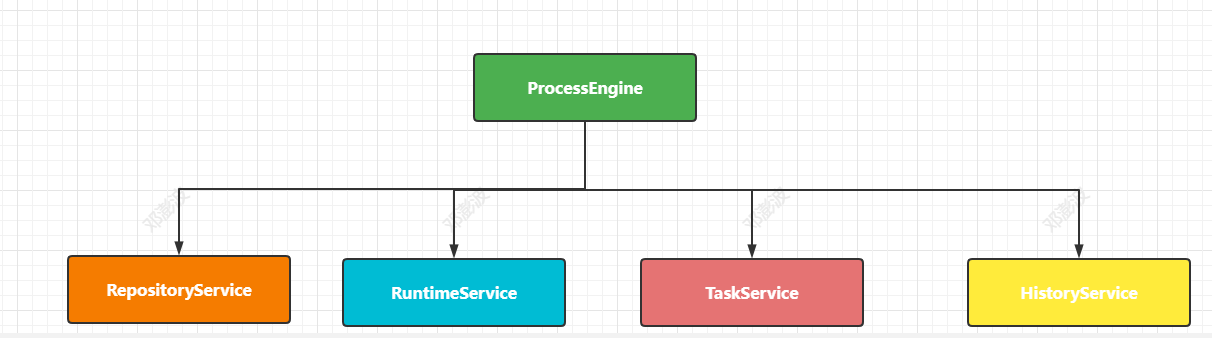

核心api

image-20220317110902636

部署流程

1
2
3
4
5
6
7
8
9
10
11
12
13
@Test
public void testDeploy() {
    Deployment deployment = repositoryService.createDeployment()// 创建Deployment对象
        .addClasspathResource("processes/请假.bpmn20.xml") // 添加流程部署文件
        .key("请假流程-key") // 流程部署的可以
        .name("请假流程-name") // 设置部署流程的name
        .deploy(); // 执行部署操作

    ProcessDefinition processDefinition = repositoryService.createProcessDefinitionQuery()
        .deploymentId(deployment.getId()).singleResult();
    log.info("deployment.getId(): {},deployment.getName(): {}",deployment.getId(),deployment.getName());
    log.info("processDefinition.getId(): {},processDefinition.getName(): {}",processDefinition.getId(),processDefinition.getName());
}

输出结果为：

1
2
deployment.getId(): c8d37e73-4b94-11ed-8a13-226fd935f263,deployment.getName(): 请求流程-name
processDefinition.getId(): ask_for_leave:4:c9098296-4b94-11ed-8a13-226fd935f263,processDefinition.getName(): 请假

启动流程

1
2
3
4
5
6
7
8
9
10
11
12

@Test
public void createProcess() {
    ProcessDefinition processDefinition = repositoryService.createProcessDefinitionQuery()
        .processDefinitionName("测试").latestVersion().singleResult();
    ProcessInstance processInstance = runtimeService.startProcessInstanceById(
        processDefinition.getId());
    log.info(
        "processDefinition.getName(): {},processDefinition.getName(): {},processDefinition.getVersion(): {},processInstance.getId(): {},processInstance.getName(): {}",
        processDefinition.getName(), processDefinition.getName(), processDefinition.getVersion(),
        processInstance.getId(), processInstance.getName());
}

删除流程

1
2
3
4
5
6
@Test
public void deleteProcess(){
    String processId="74388397-4dc5-11ed-9026-226fd935f263";
    runtimeService.deleteProcessInstance(processId,"测试删除");
    log.info("========删除流程完成==========");
}

推进流程

1
2
3
4
5
6
7
@Test
public void completeProcess(){
    String processInstanceId="74388397-4dc5-11ed-9026-226fd935f263";
    Task leaderTask = taskService.createTaskQuery().processInstanceId(processInstanceId).singleResult();
    taskService.complete(leaderTask.getId(), Collections.singletonMap("approve",true));
    log.info("==========领导审批完成=====");
}

流程历史

1
2
3
4
5
6
7
8
9
@Test
public void historyProcess(){
    String processInstanceId = "1a77bd50-4ec2-11ed-904d-226fd935f263";
    List<HistoricActivityInstance> historicActivityInstanceList = historyService.createHistoricActivityInstanceQuery()
        .processInstanceId(processInstanceId).list();
    historicActivityInstanceList.forEach(historicActivityInstance -> {
        System.out.println(historicActivityInstance.getDurationInMillis());
    });
}
Java
#Java
Flowable
https://bolg.pengfanao.top/2024/08/01/后端/Flowable/
作者
pfa
发布于
2024年8月1日
许可协议
